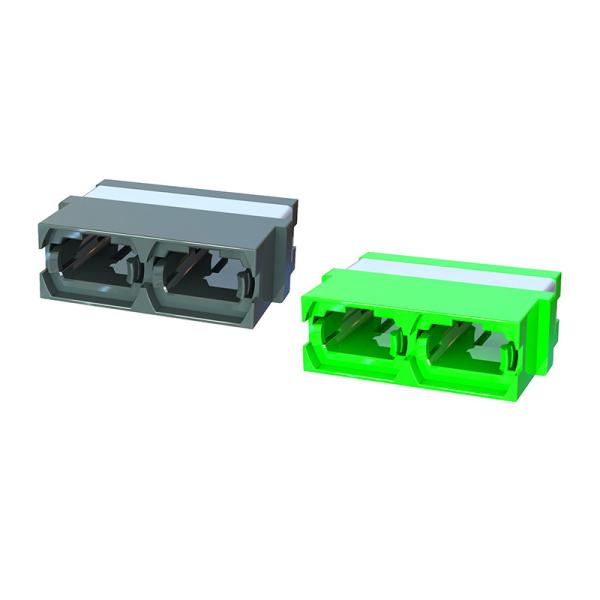

High-Speed End-To-End Connectivity MPO Fiber Optic Adapter Flangeless Adapter
Fiber Optic adaptors are available for all standard connector types in both singlemode and multimode including Simplex and duplex versions. Our fiber optic adapters are made with high precision machines which ensure precise alignment for the connectors when they are plugged in.
Fiber optic adapter (also called flange, coupler) is a fiber optic connector docking components,Fiber Optic Adaptors are color coded allowing easy identification of the adaptor type.
Features
-100% tested on optical performance (Insertion Loss & Return Loss)
-End-face geometry requirement complies to Telcordia GR-326-CORE
-For end-to-end fiber cable connectivity
-Low insertion and return loss and back reflection
-High Precision Alignment
-Good Wearability
-Good interchangeability
-Good Temperature characteristic
Applications
-CATV
-Active device termination
-Telecommunication networks
-Metro networks
-Local Area Networks (LANs)
-Test equipment
Environmental & Mechanical Data
| Operating Temperature | -40 to +75º C |
| Storage Temperature: | -40 to +85º C |
| Temperature Cycling (61300-2-18) | -40 to +75º C, 40 cycles=0.2dB change |
| High temperature (61300-2-18) | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat (61300-2-19) | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair (61300-2-1) | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability (61300-2-2) | 500 Mating Cycles, clean every 25, <0.2dB change |
| Adapter Material | Plastic |
| Adapter Color | Black,Blue,Green,Aqua, |
FAQ
1.What are you selling ?
We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor
2.Whats the MOQ?
MOQ is flexible based on the products type.
3.Whats the best price you can offer?
The unit price will vary according to the material you want and the quantity you order
4.Do you support customization?
Yes ,customization is available according to your product requirements.
5.Can I get a sample first?
Yes ,Warmly welcome
6.Can I add my own logo?
Yes.OEM and ODM are available .
